Debricking a Formlabs Form 3+: SOM failure and black screen of no boot

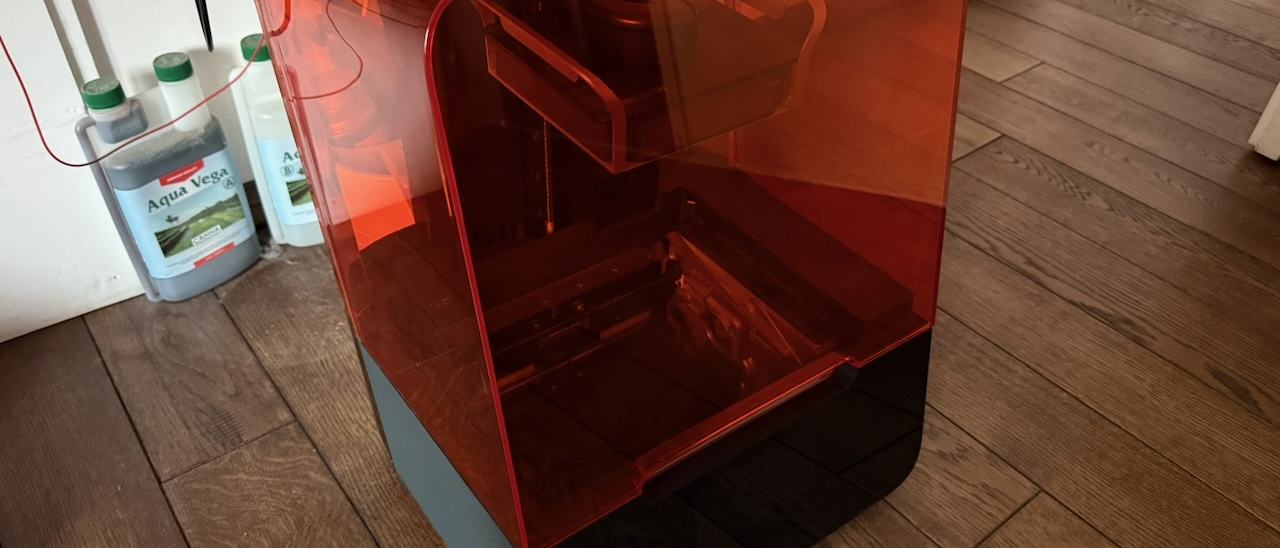

The symptom

The printer simply stopped coming up. One day it powered on and never reached a usable state. No firmware update had been done, and the machine had been on a UPS the whole time, so there was no power event to point at. From the outside, it looked dead: power on, Formlabs logo lights up, screen backlight blinks, but no motor movement and no working interface, no obvious life.

So how should I approach this issue? Of course, by reaching out to support. But after waiting for two days, I got a response saying I have to replace the System on a Module (SOM), but they no longer have them in stock, so I should just buy a new printer...

Well, that won't do so like any other good engineer, I started searching for a serial console.

Quest for the serial console

You cannot diagnose a Linux device by staring at it. You need its serial console, the text stream the bootloader and kernel print as they start. So where is it?

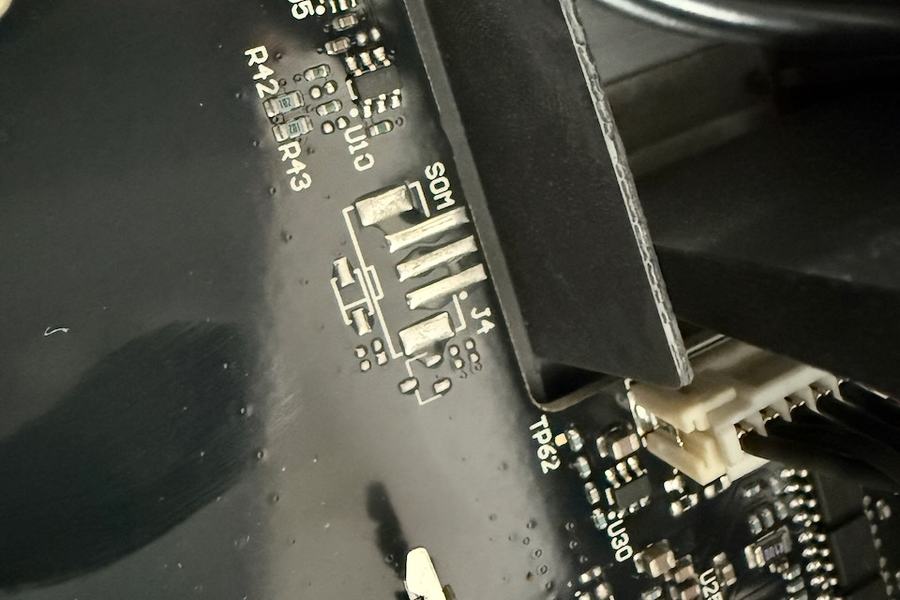

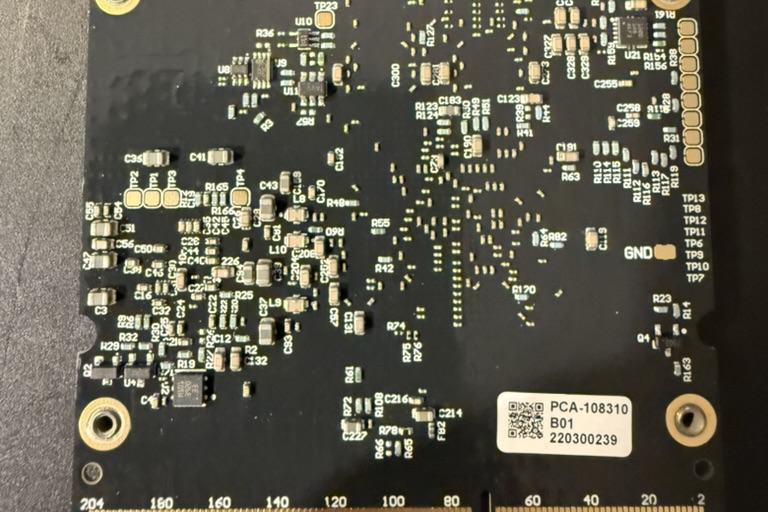

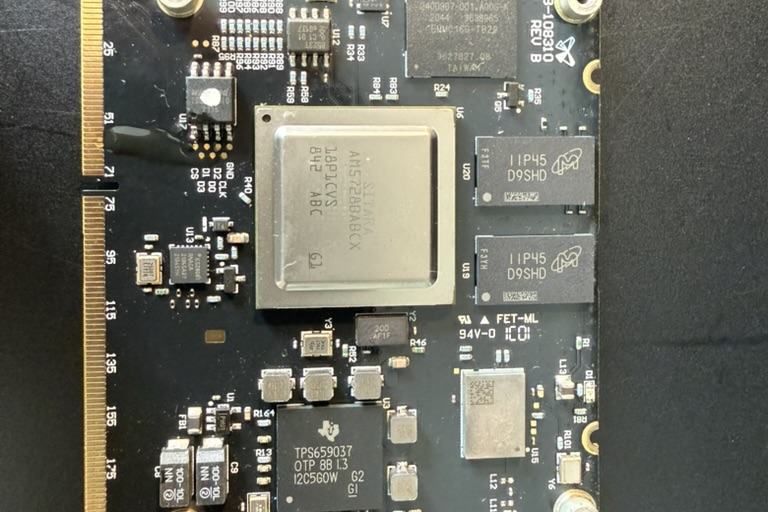

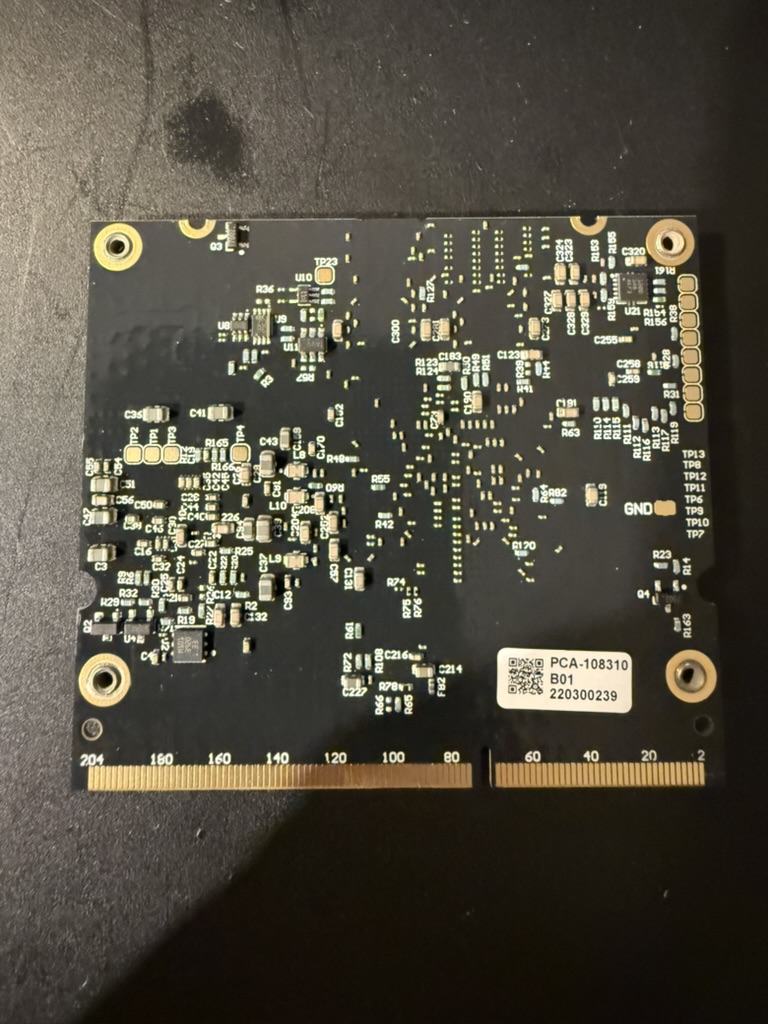

SOM has a couple of test points, but they are either under a heatsink or on the bottom of the board. Finding what they do get even trickier because, despite the board marking GND and 3.3V, it does not boot when the power is applied to them. Probably the DIMM connection to the motherboard provides the enable signals, but I was not planning on desoldering that.

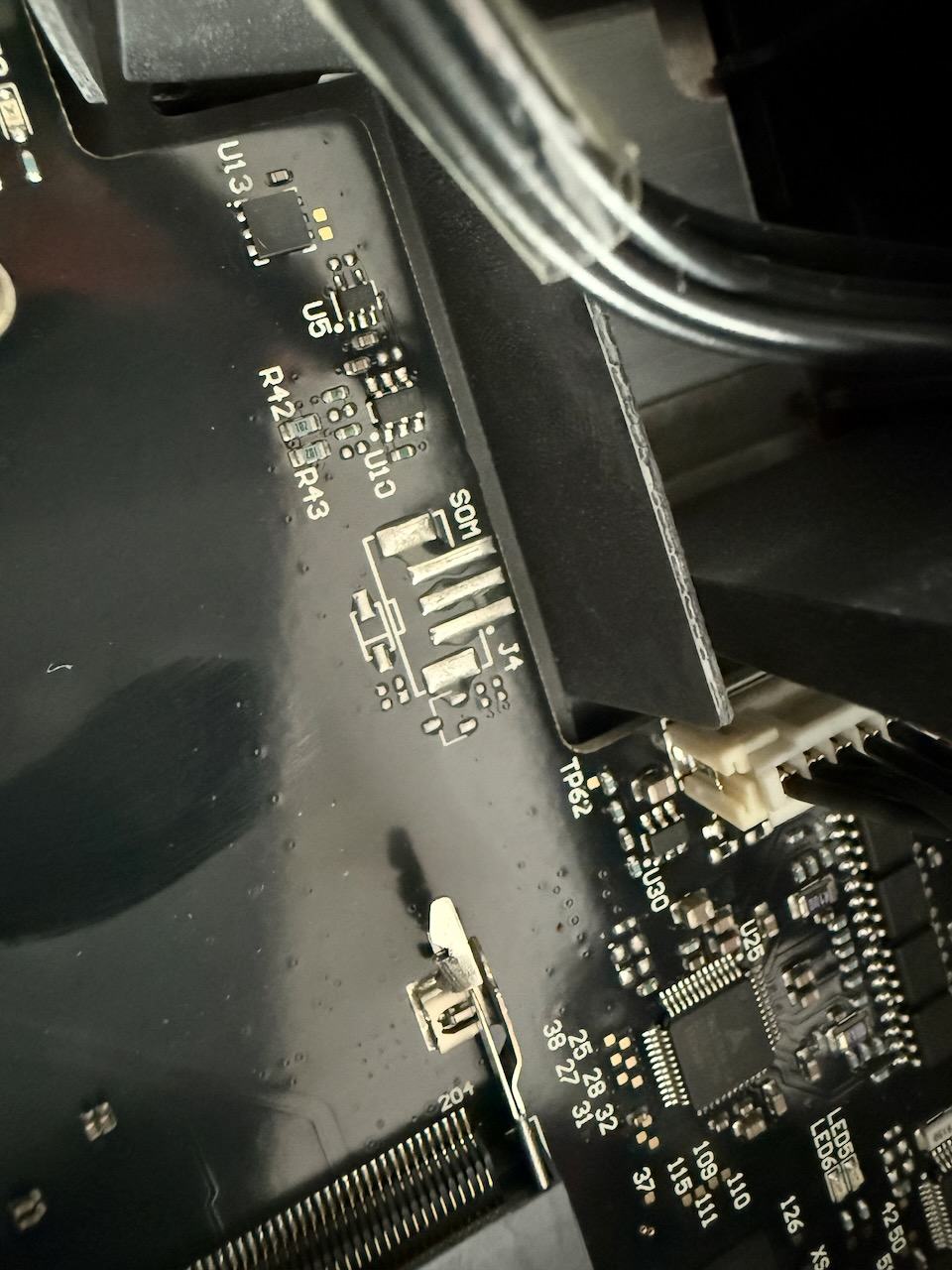

I checked the "SOM" port on the motherboard for continuity to the DIMM connector with a multimeter, but that was a dead end.

So, no clear indicator on the serial port on the SOM and the motherboard... but wait, there was one more board!

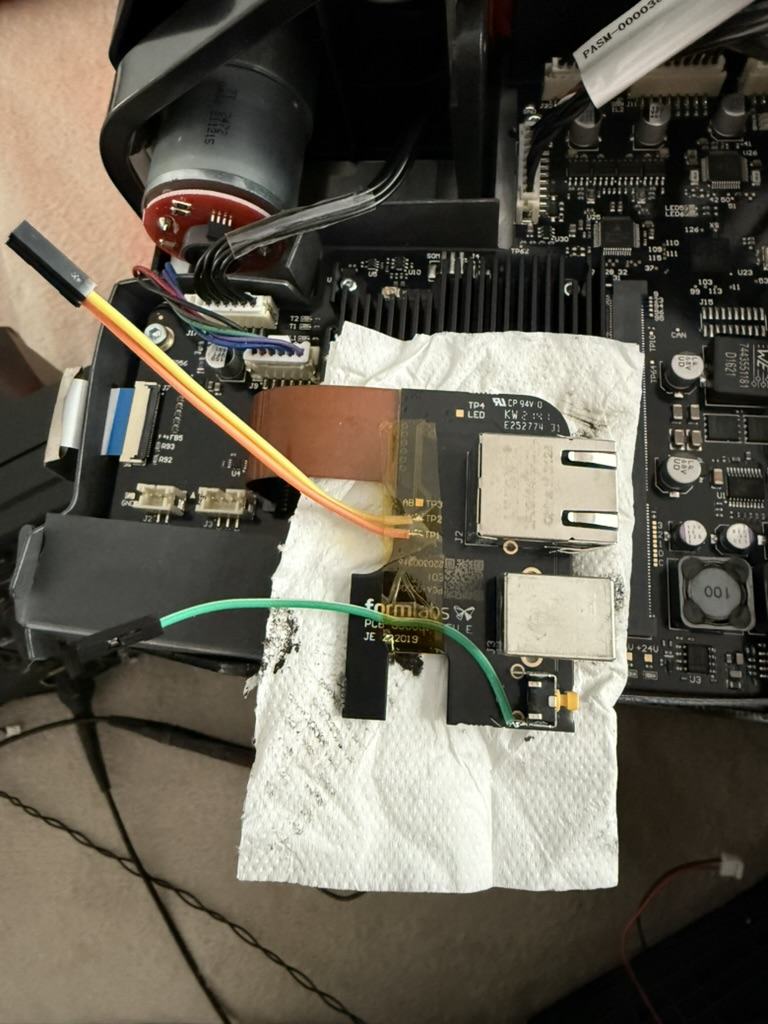

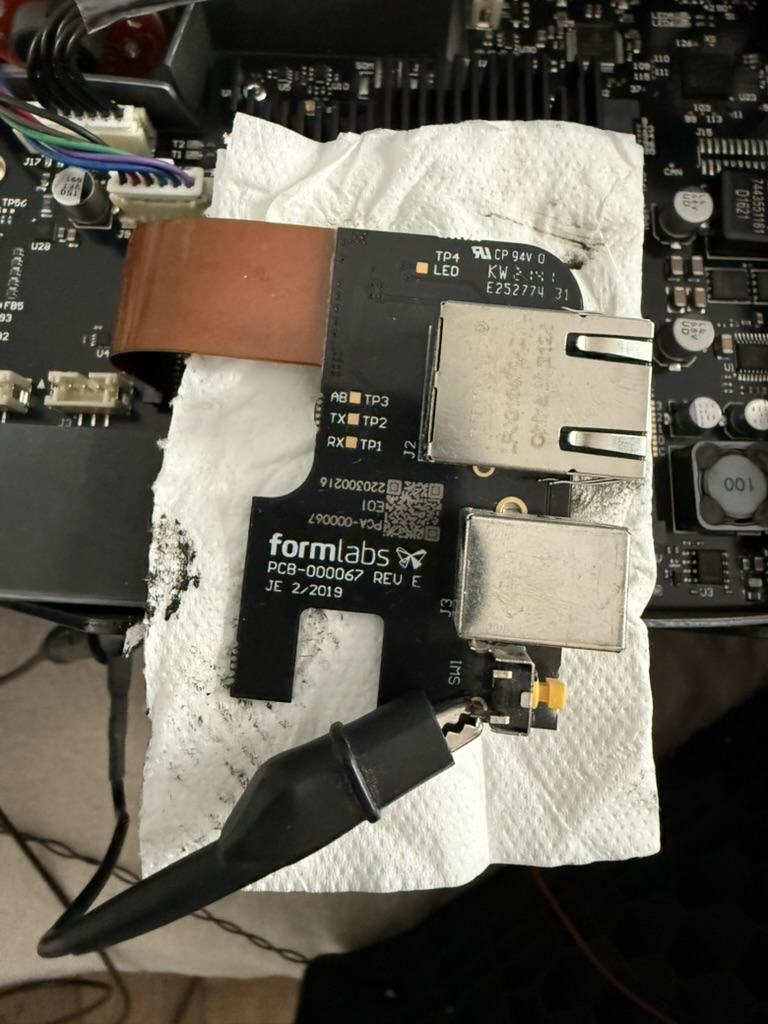

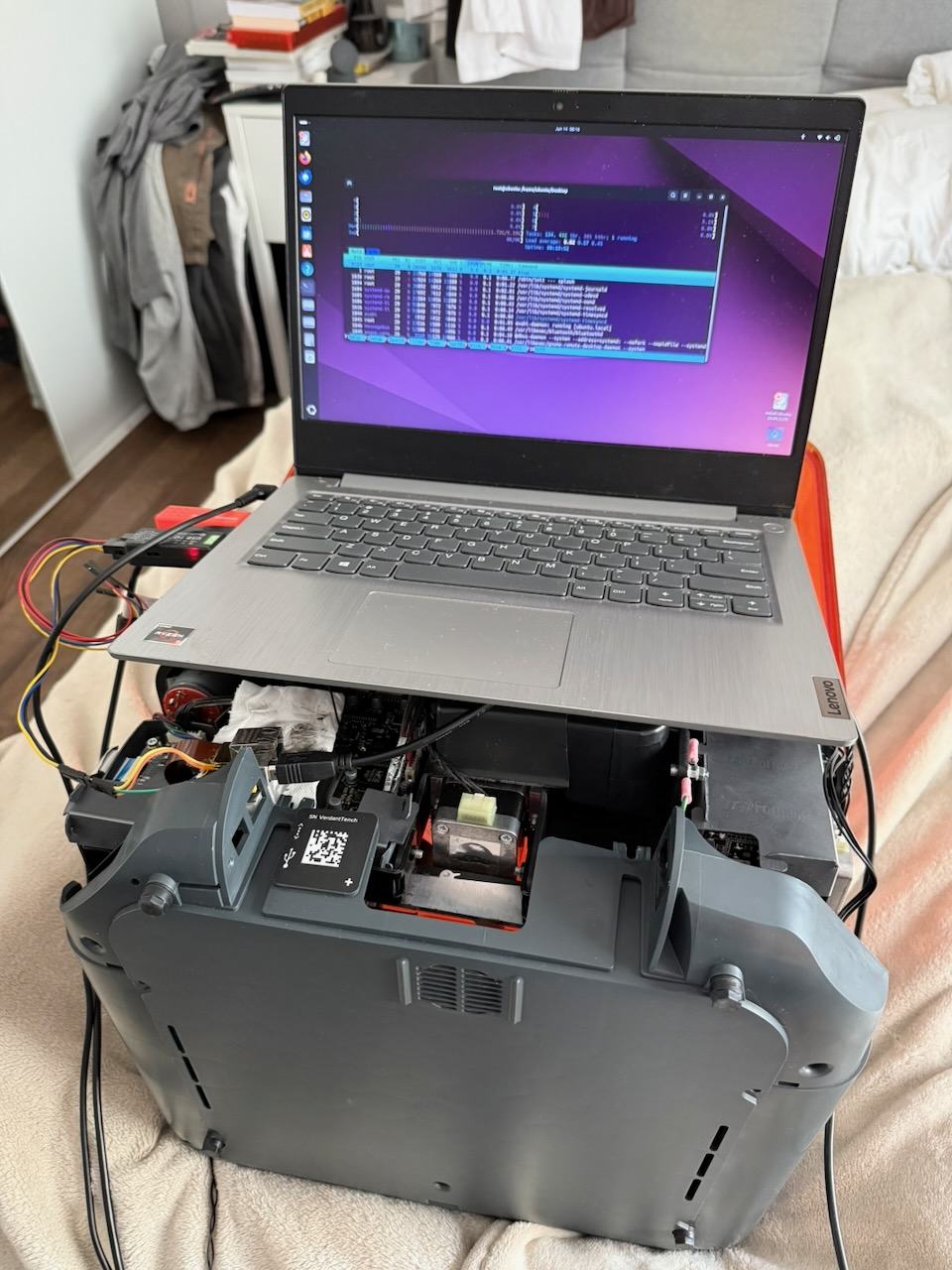

This is the connector board on a flex cable. It has test points for an LED, TX, RX and AB. I have soldered the wires and attached a serial-to-USB adapter, and voilà! Kernel messages. To get GND for the serial connection, I soldered a wire to the reset button on the metal chassis (it will not work without GND).

stty -F /dev/ttyUSB0 115200 cs8 -cstopb -parenb raw -echo
cat /dev/ttyUSB0 | tee boot.log

The first useful finding came straight away: the console is output only. I could read everything the board printed, but anything I typed never reached it. Formlabs locked the console down for production, which is sensible from their side and inconvenient from mine. For pure diagnosis it does not matter, because at this stage all I need to do is read.

Reading the boot log told me almost everything

Power on, capture, and the log tells the story. Trimmed to the part that matters:

[    2.871903] EXT4-fs (mmcblk0p6): mounted filesystem with ordered data mode.
[    2.880068] VFS: Mounted root (ext4 filesystem) on device 179:6.
Freeing unused kernel memory: ...
/sbin/init: error while loading shared libraries: /lib/libc.so.6: invalid ELF header
[    3.116805] Kernel panic - not syncing: Attempted to kill init! exitcode=0x00007f00

Read that carefully:

The kernel loads fine.
The 16 GB internal storage (mmcblk0) is detected and apparently healthy.
The root partition mmcblk0p6 mounts as ext4, and the filesystem journal replays cleanly.
The kernel hands off to /sbin/init, the first userspace program.
init tries to load the C library, /lib/libc.so.6, and finds an invalid ELF header.
With no working init, the kernel does the only thing it can: panic.

So this was not a dead chip, not a dead controller, not a lost partition table, and not a trashed filesystem. It read like one corrupted file.

/lib/libc.so.6 is the C library that essentially every program links against, so the moment it is unreadable, nothing in userspace can start. The first program to need it, init, falls over, and the kernel gives up.

That felt like a good place to be, because the fix is conceptually simple: get write access to that partition and replace one corrupt file. The hard part is "get write access," and that is where most of the work went.

What I was actually dealing with

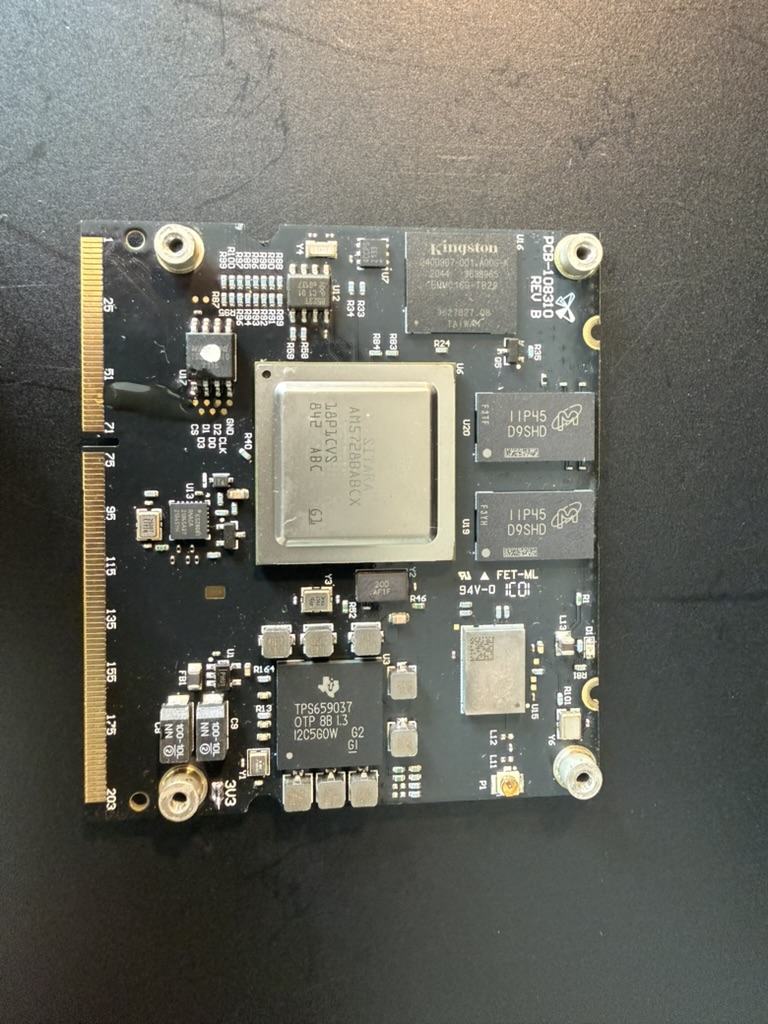

To plan anything I had to know exactly what was in front of me. The boot log plus a look at the board gave the full picture:

SoC: TI Sitara AM5728, reports as DRA752 ES2.0, dual Cortex-A15.
Module: CompuLab CL-SOM-AM57x system on module. So there is a fallback if the SOM gets fully bricked.
Machine name: "Formlabs Daguerre", their internal board name.
Bootloader: Das U-Boot 2017.01-cl-salsa-am57x, CompuLab's build.
Kernel: TI vendor Linux 4.9.x.

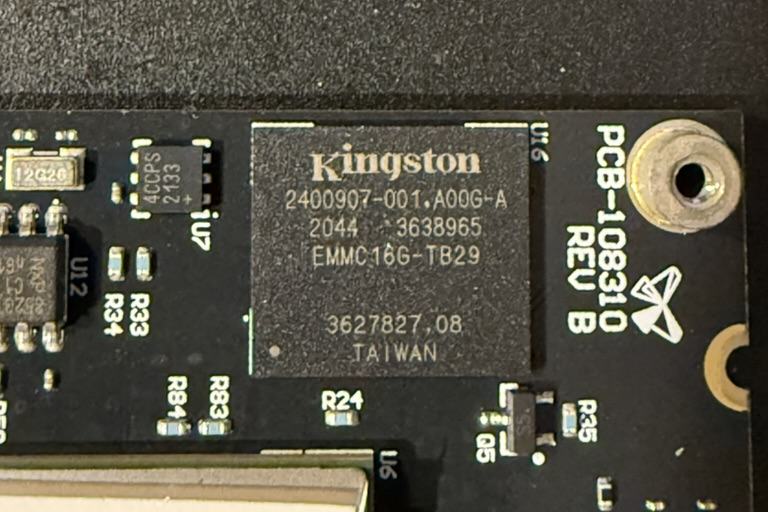

Main storage: soldered eMMC, 16 GB, shows up as mmcblk0.
Boot flash: Winbond W25Q32 QSPI NOR, 4 MB, holds the bootloader.
Console: UART3 at 0x48020000, exposed as ttyS2, 115200n8.

Two facts here shaped everything that followed.

First, the AM5728 is a GP (general-purpose) part, not a high-security part. There is no signed boot wall stopping me from running my own boot code on it.

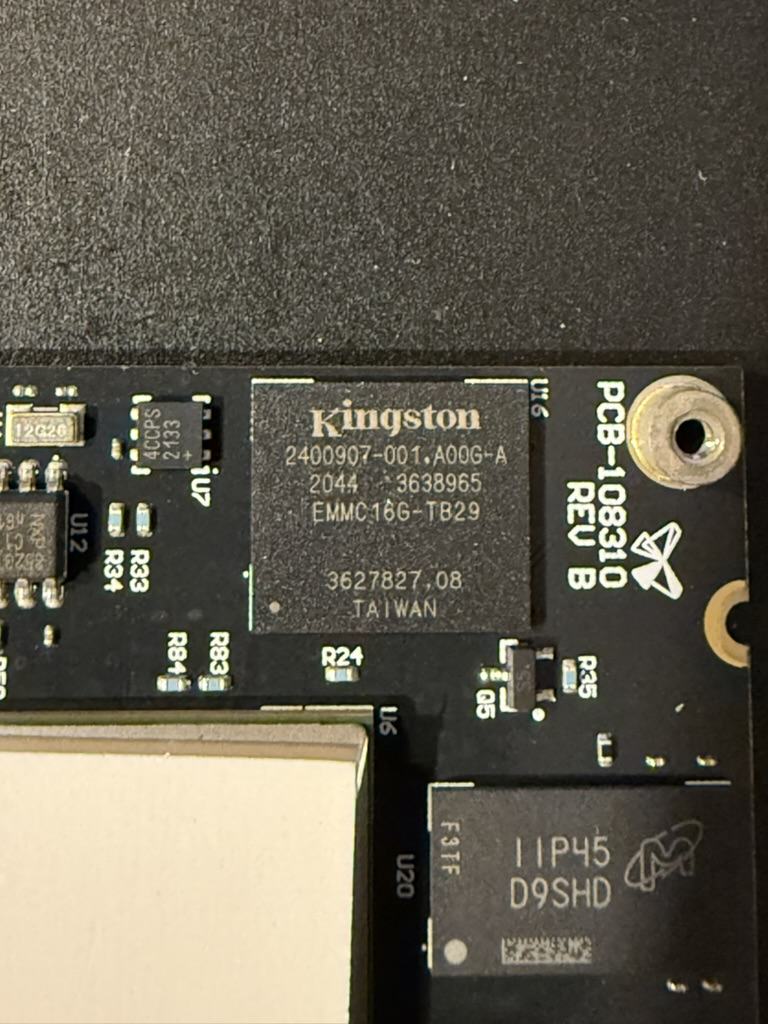

Second, the eMMC is soldered down. There is no SD card slot and no socket. I could not pop the storage out, read it on another machine, and put it back. Or do a full BGA desoldering, attaching tiny wires to access it and then solder it back with fixes that would hopefully restore the corrupted file. That did not sound like fun. Whatever I did, I had to do in place, through the chip's own interfaces.

Two flash chips, and why there are two

People are sometimes surprised that the printer has two separate non volatile chips. They do different jobs:

The QSPI NOR (4 MB) is small, simple, and reliable. It holds the early boot code: the first stage loader (MLO/SPL), U-Boot itself, and U-Boot's environment (its settings). The SoC's mask ROM knows how to read this chip at power on. Think of it as the ignition.
The eMMC (16 GB) is large and holds the actual operating system: the kernel, the device tree, and the root filesystem with all of Formlabs' software. This is the chip with the bad file on it.

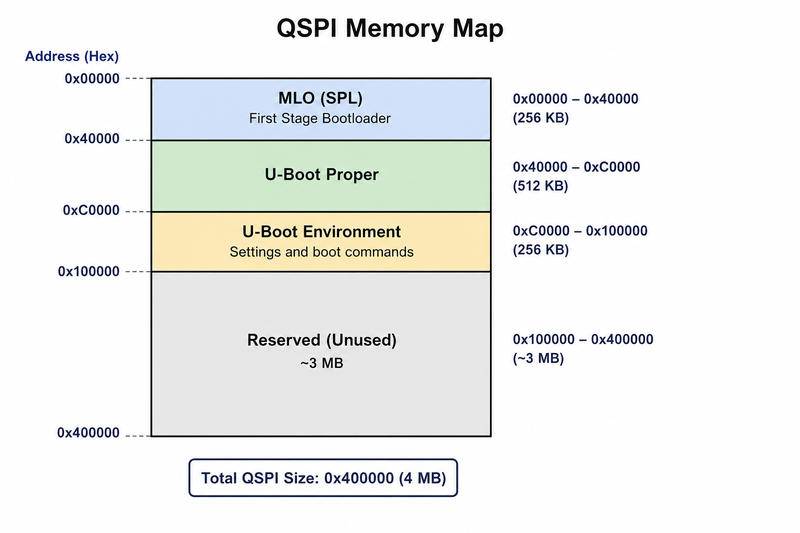

The QSPI layout on this board, for reference:

0x00000 to 0x40000: MLO, the first stage bootloader (SPL).
0x40000 to 0xc0000: U-Boot proper.
0xc0000 to 0x100000: the U-Boot environment (settings and boot commands).
0x100000 to 0x400000: reserved, about 3 MB, unused.

How Sitara CPU boots

A recovery plan lives or dies on understanding the boot chain, so here it is for this class of TI SoC:

Mask ROM. Burned into the SoC, runs first. Then it reads the QSPI and loads the first stage loader. It can also be coaxed into accepting code over USB.
MLO / SPL. The first stage loader. Its main job is to bring up the DDR memory and then load the bigger bootloader.
U-Boot. The full bootloader common on embedded systems and Android phones. It reads its environment, then loads the kernel and device tree and starts them. On this board, U-Boot runs silently in production, and with the console input disabled, there is no "press a key to stop" prompt available.
Kernel. Linux comes up, mounts the root filesystem from the eMMC, and hands off to /sbin/init.
init and userspace. This is where it died.

My printer got all the way to step 5 and fell at the last hurdle. The hardware, the bootloader, the kernel, and the filesystem were all fine. Only userspace could not start.

Why I suspected bit rot

The interesting question was why one file went bad, because the answer affects how worried other Form 3 owners should be. The usual suspects did not fit:

Power loss or brownout? The machine was on a UPS. And a power loss during a write tends to leave filesystem damage that the journal flags. Here, the journal replayed cleanly, and only the file's contents were wrong. That is not the signature of an interrupted write.
Bad firmware update? No update was performed. The file just went bad in place.

What does fit is silent bit rot in the eMMC. NAND flash cells lose charge over time and can be disturbed by nearby reads and by accumulated wear. An ageing or marginal block that holds a file can eventually read back incorrectly. The block that happened to hold libc.so.6 returned garbage, the ELF header no longer validated, and the system could not start. The surrounding filesystem metadata, living in other blocks, was untouched, which is exactly what you would expect from a localised media problem rather than a system-wide event.

These boards accumulate years of logging and state writes to the same eMMC, so a single tired block is entirely plausible. Several other owners report similar "it just stopped booting" failures, which is consistent with a wear and retention pattern rather than bad luck.

First attempt at a way in: forcing USB boot

I knew the target: get write access to mmcblk0p6. The first idea was to make the SoC boot from USB instead of the eMMC, push my own bootloader, and use that to reach the storage.

The AM5728 mask ROM will fall through to a USB peripheral boot mode if it cannot boot from its normal source. I desoldered and lifted the QSPI chip-select pin to isolate the chip and break the normal boot path, and on power up the SoC duly enumerated on my host as a USB device (it shows up as 0451:d013, TI's "VAYU" boot device).

Then I burned time on the wrong tool. My first reach was omapboot / omap4boot, which speaks the OMAP44xx ROM USB protocol. The AM5728 is a DRA7xx class part with a different ROM USB boot protocol. The device enumerates but never accepts the OMAP4 handshake. It was the right idea aimed at the wrong era of silicon.

The correct host tool for this SoC is TI's dra7xx-bootswitch. I built it, sliced an SPL out of a TI AM57x EVM MLO, and pushed it. The transfer went through (about 157 KB sent), but then nothing: no serial banner, no second stage USB device. The reason is mundane and important. The first stage loader's main job is to initialise DDR, and the DDR configuration is board specific. A stock TI EVM SPL does not match the CompuLab SOM's memory, so it faults during DDR bring up and never gets far enough to do anything useful. Without a first stage loader built for this exact module, USB peripheral boot was a dead end.

Reading the boot flash with a Raspberry Pi

If I could not push a working bootloader in, the next move was to read the genuine one out, so I could understand the lock and eventually modify it. The QSPI is a standard 3.3V SOIC-8 SPI NOR chip, and a Raspberry Pi has an SPI bus, and flashrom talks to SPI NOR directly.

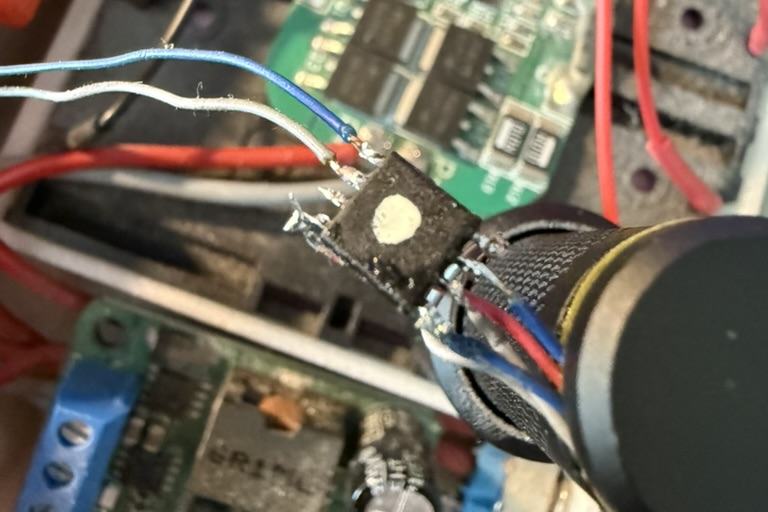

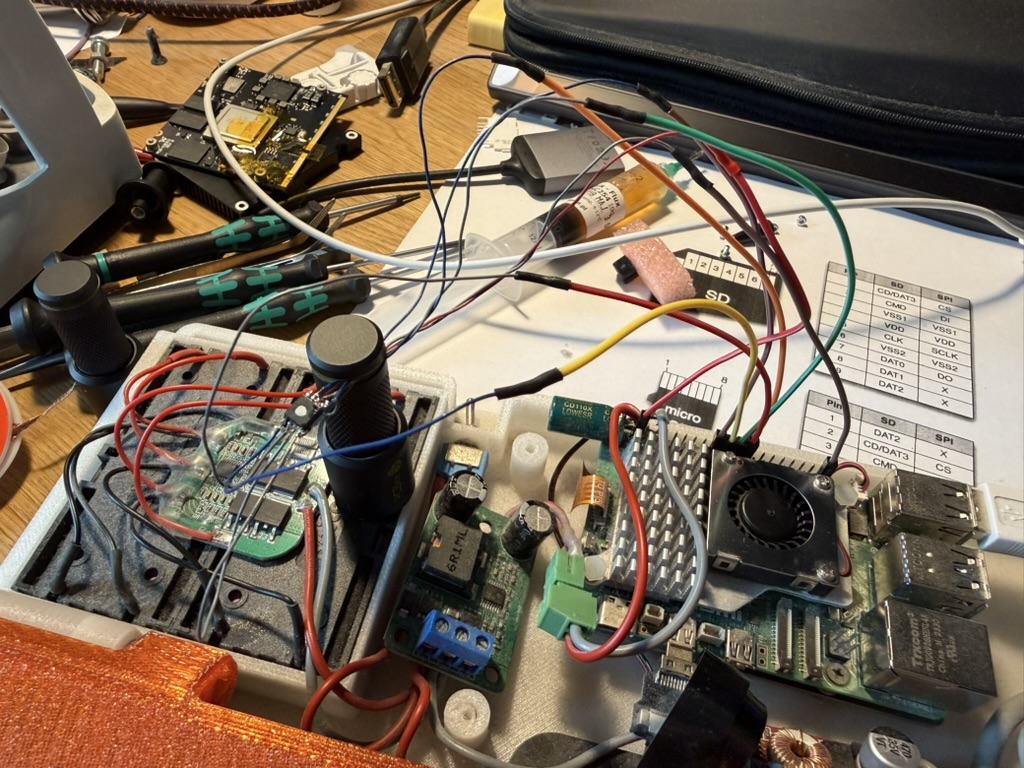

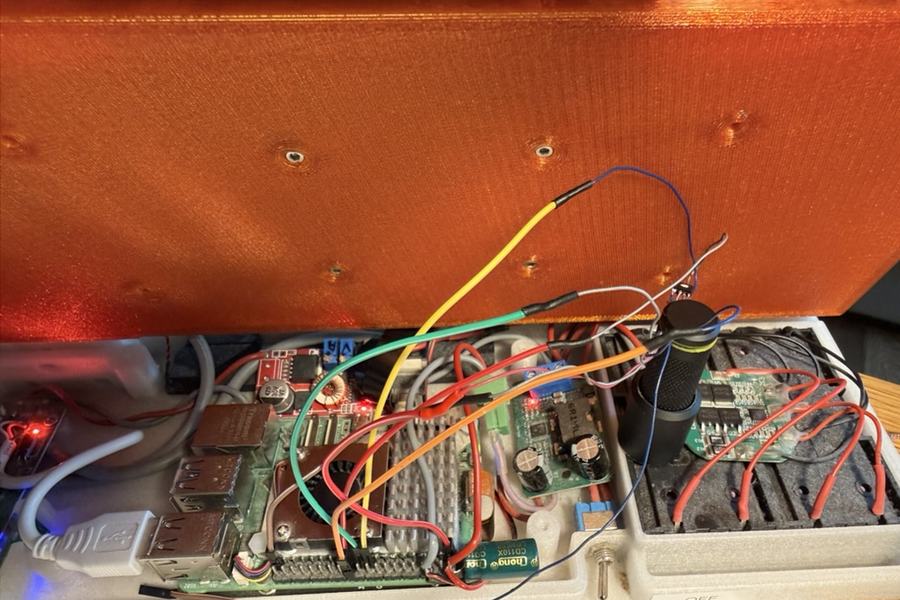

QSPI deadbug connected to raspberry pi for flashing

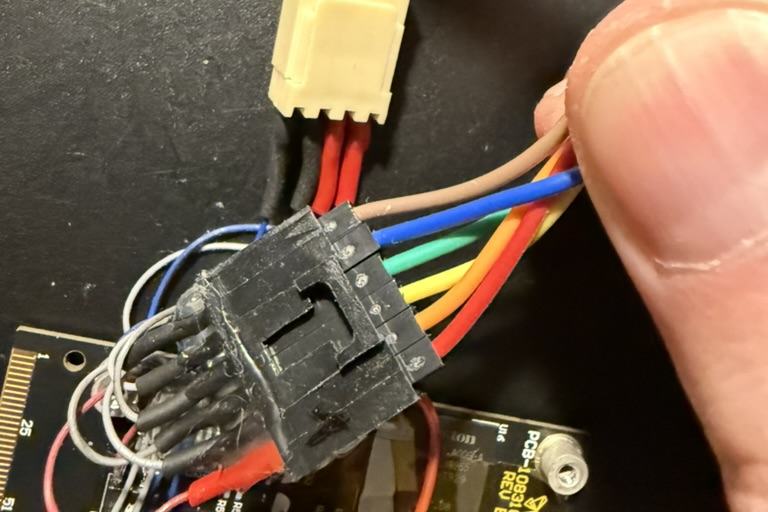

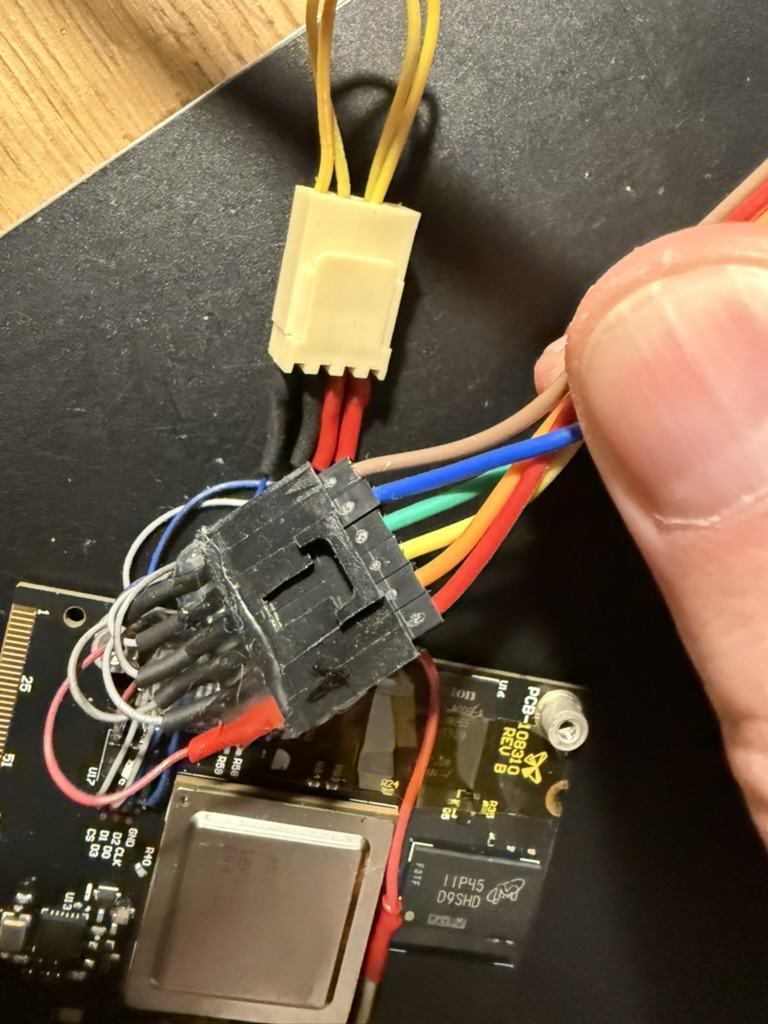

Because of multiple debricking attempts I had to wire a connector to avoid constand soldering and desoldering of the QSPI chip

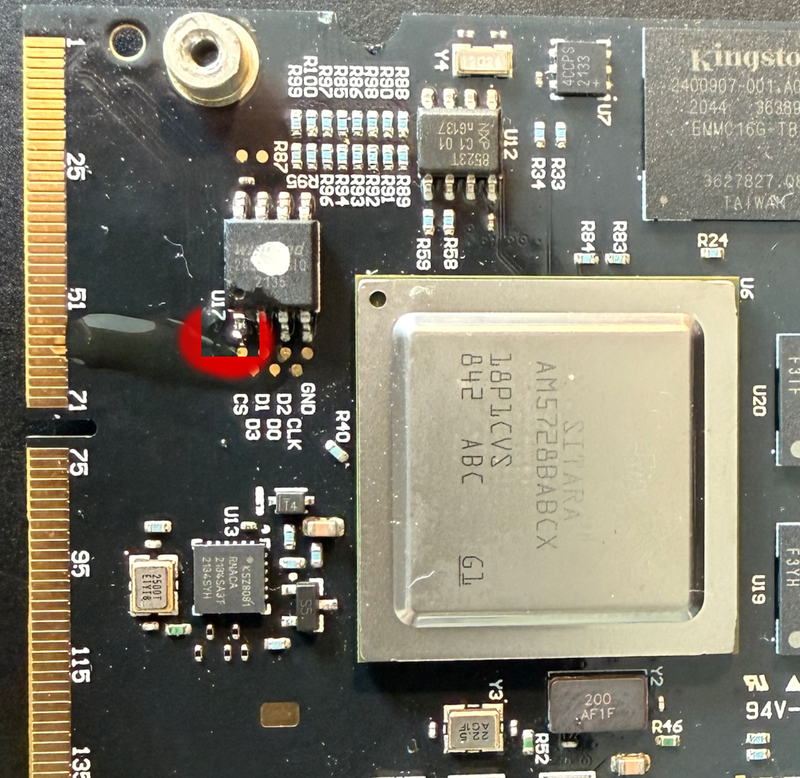

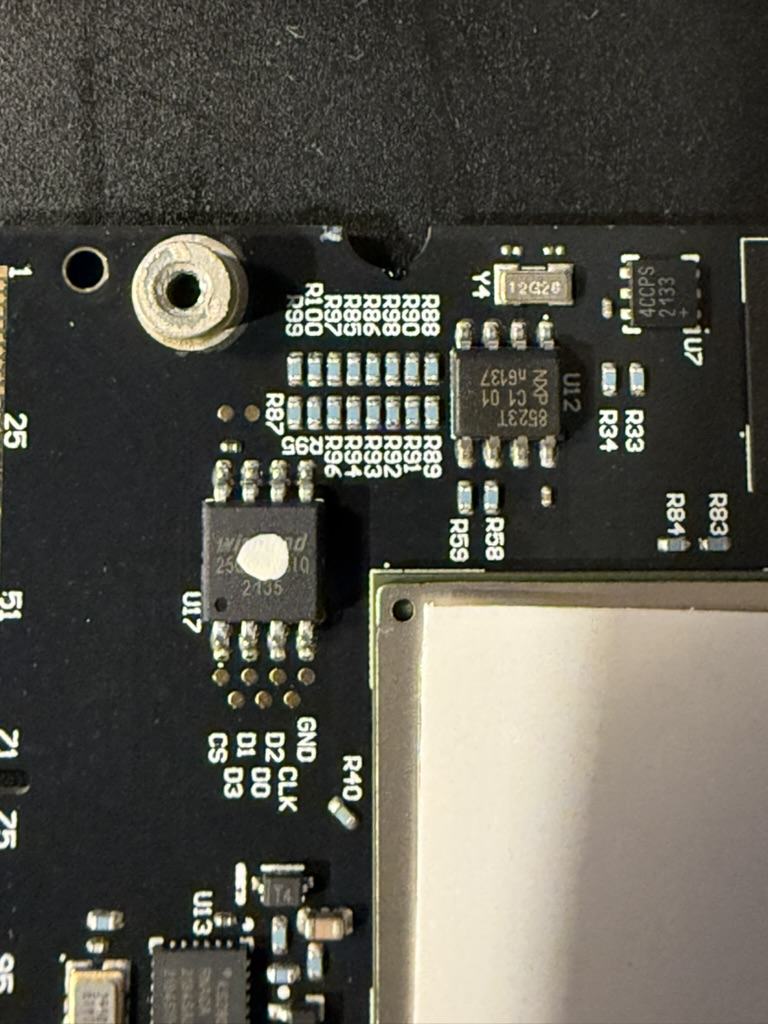

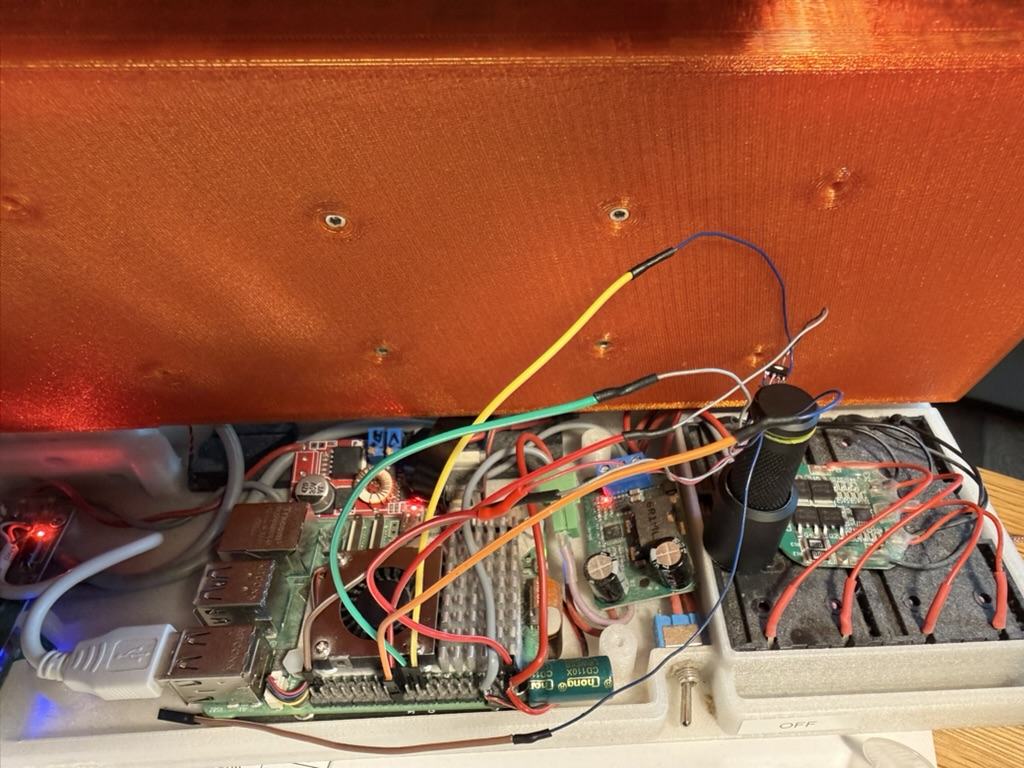

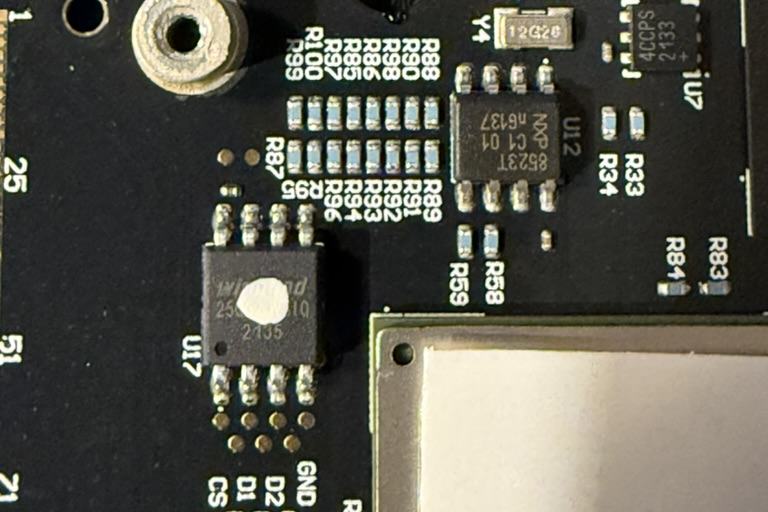

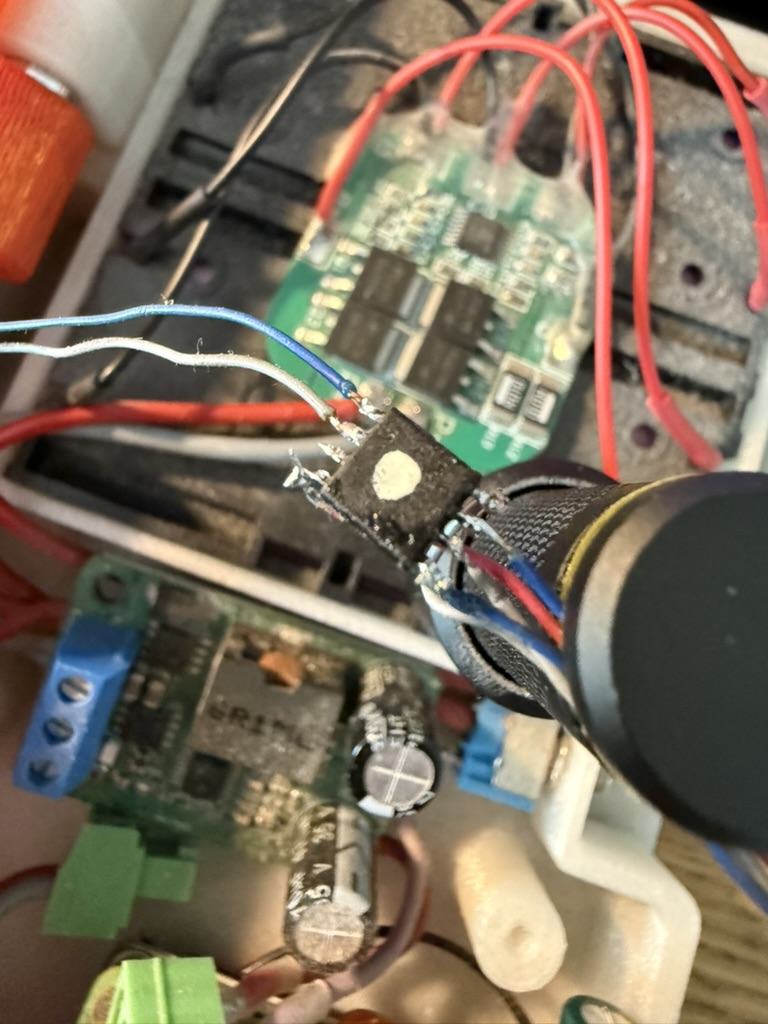

With the chip lifted off the board to isolate it from the SoC, a deadbug approach was my first try (Later, I added a small soldered connector, because desoldering, attaching tiny wires, then removing them and soldering the chip back to the board was taking too long).

One wiring note that cost me twenty minutes: the chip will not respond unless its write-protect and hold pins, and its supply, are all tied to 3.3V, and the clip has to sit cleanly on all eight contacts. With that right:

flashrom -p linux_spi:dev=/dev/spidev0.0,spispeed=1000 -c W25Q32JV -r qspi_dump.bin

I read it twice and compared the two dumps byte for byte. They matched, which told me the connection was stable and the data was trustworthy. That 4 MB dump is also a complete backup of the boot chain, which is worth having on its own.

What the boot flash told me

The dump was the real turning point of this first phase. Decoding it:

The MLO and U-Boot were byte for byte the genuine Formlabs/CompuLab build, with no signature wall on the GP part.
The U-Boot environment had silent=1 and bootdelay=0. That is why the console looked locked: silent output and no countdown to interrupt.
The boot logic implements an A/B root filesystem. A variable called fl_bootpart selects which partition the system boots from, and it flips between partition 5 and partition 6. The printer was running from partition 6, the flash bit-rotted one. There was a second, separate copy of the operating system on partition 5.
There was about 3 MB of unused space in the QSPI, from 0x100000 to the end.
There is a factory netboot recovery path, reached through a test button on a GPIO, that pulls a kernel and root filesystem over the network from a hardcoded server address.
U-Boot had the usual storage and network commands compiled in (ext4load, ext4write, tftp, dhcp, nfs, mmc, sf), but no ums, no fastboot, and no dfu. So there was no built-in way to expose the eMMC as a USB disk.

That 3 MB of free space in the boot flash both turned out to matter a great deal.

Trying to unlock the console

Knowing why the console was silent, the obvious move was to un-silence it. The environment is a list of name=value pairs with a CRC32 in front. Get the CRC wrong and U-Boot rejects the whole block and falls back to defaults, so this has to be exact. I reproduced the genuine environment's checksum byte for byte first to prove I understood the format, then made a tiny edit: remove silent, set a real bootdelay. Only a handful of bytes changed. I flashed just the environment region back with the Pi and verified it.

Then I tried to use the console: interrupt the autoboot, drop to a U-Boot prompt, type the few commands that would have ended this in five minutes.

Nothing I typed did anything.

Proving the serial input was really dead

I needed to know whether the input was genuinely dead or just mis-wired, because the answer changes the entire approach. U-Boot's environment defines a couple of helper commands that toggle the printer's status LEDs through a GPIO. I put a multimeter on that GPIO test point and sent the toggle commands blindly. The voltage never moved. The autoboot countdown was never interrupted either. And an FTDI loopback test confirmed my adapter's transmit line was fine on its own.

The conclusion was unavoidable: the board's UART receive path is disabled in this production build either in software or in hardware. The console is output only by design, not by accident. Even with silent gone and a real bootdelay set, there was no way to type a single character at the bootloader.

Where this left me

At the end of this first stretch of work I had learned a lot and proved a hard limit:

The printer is, as far as the boot log shows, a small number of corrupt files away from working.
The storage is soldered, so I have to reach it in place, through the chip's own interfaces.
The SoC is open, a GP part, so I am allowed to run my own boot code. USB peripheral boot is reachable but needs a first stage loader built for this exact module, which I do not have.
I can read the boot flash and rewrite it at will with a Raspberry Pi and flashrom, and I have a verified backup of it.
But the serial console takes no input. I can watch the machine boot and I can rewrite its boot flash, and I still cannot type one command at the bootloader.

That last constraint, no interactive prompt anywhere, is the thing that shaped every decision about how to get a repair onto the chip.

Looks like a part two will be needed...

Btw. the full boot log is bellow:
